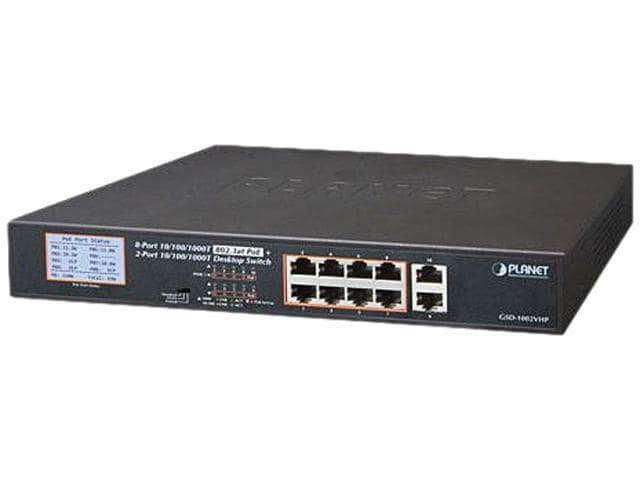

Planet GSD-1002VHP 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch with LCD PoE Monitor (120 Watts)

Quick Summary

Ideal, High-performance Integration Solution for Secure IP Surveillance Infrastructure

The PLANET GSD-1002VHP provides an ideal Plug-and-Watch Power over Ethernet solution for small businesses and system integrators to easily deploy Power over Ethernet networks.

It is equipped with eight 10/100/1000BASE-T ports with 802.3at/af PoE injector function (Port-1 to Port-8), and two extra 10/100/1000BASE-T uplink ports with inner power system. With a total PoE power budget of up to 120 watts and non-blocking data switching performance, it fulfills the demand of sufficient PoE power for HD IP surveillance. It features a hardware DIP switch, giving you the flexibility to select the operation modes – “Standard”, “VLAN” or “Extend”. For maximum reliability, it’s loaded with a silent fan for stable and efficient power performance.

The GSD-1002VHP provides real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality. The built-in LED indicators indicate the status of the unit (system power, per port PoE ready & PoE activity, and speed Link/Act), eliminating guesswork.

Plus, the GSD-1002VHP comes in 12-inch small size and is 1U rack mountable, allowing for easy and quick installation; no PC or software required.

Features

LCD Monitor for Real-time PoE Usage and System Status Display

The LCD monitor of the GSD-1002VHP clearly shows the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. With its brand-new LCD monitor, user is able to obtain detailed information about real-time PoE working condition of the GSD-1002VHP directly. Also the Power Budget Control function helps to prevent power budget overloading.

VLAN and Ethernet Data Transmit Distance Extension

The built-in solid DIP switch provides “Standard”, “VLAN” and “Extend” operation modes. The GSD-1002VHP operates as a normal IEEE 802.at/af PoE Switch in the “Standard” operation mode. The “VLAN” operation mode with port-based VLAN function can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.

Two Gigabit Uplink Ports

The GSD-1002VHP provides 2 extra Gigabit ports supporting 10/100/1000BASE-T RJ45 copper for IP surveillance network devices such as NVR, video streaming server or NAS to facilitate surveillance management. With up to 1000Mbps transfer rate, it ensure high-speed data and video transmission, reliable assurance for connection between the surveillance system and outside network where the eight PoE+ ports can be used to their full potential.

Robust Protection

The GSD-1002VHP protects against the ESD 4KV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Easy Installation and Cable Connection

As data transfer and High Power PoE are transmitted over a cable, the GSD-1002VHP is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the GSD-1002VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Applications

Perfectly-integrated Solution for PoE IP Camera and NVR System

With its 20Gbps high-performance switch architecture and 120-watt PoE power budget, the recorded video files from the 8 PoE IP cameras can be powered by the GSD-1002VHP and saved in the 8-channel NVR systems or surveillance software to perform comprehensive security monitoring.

For instance, one GSD-1002VHP can be combined with one 8-channel NVR and 8 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet. It is an ideal device for catering to medium scale of IP surveillance or public service PoE networks at a lower total cost.

Department/Workgroup PoE Switch

Providing eight 802.3at PoE+ in-line power interfaces, the GSD-1002VHP can easily build a power that centrally controls IP phone system, IP camera system and wireless AP group for enterprises. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power-socket limitation, the GSD-1002VHP makes the installation of cameras more easily and efficiently.
