Netis 8 Port Gigabit Ethernet PoE Switch
Four-Port PoE / 802.3at/af

Overview

The Netis PE6108GH Gigabit Ethernet PoE Switch provides a great selection for expanding your home or office network. Four of the eight 10/100/1000Mbps RJ45 ports support Power over Ethernet(PoE) function. It can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs), like PoE APs, IP Phones, IP cameras, etc. In this case, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets.

Features

• 8 10/100/1000Mbps Auto-Negotiation RJ45 ports, with PoE function (Port 1-4)
• Complies with IEEE 802.3at/af standards
• Supports PoE power up to 30W for each PoE port, 60W for all PoE ports
• Supports PoE+ IEEE 802.3at/af compliant Powered Device (PD)
• Supports 8K MAC address table, MAC address auto-learning & auto-aging
• Supports IEEE 802.3x flow control for Full-duplex mode, Back-pressure flow control for Half-duplex mode ports
• Plug and play, no configuration required
• Power Max. LED to monitor the PoE power status
• Steel desktop design, with internal power supply

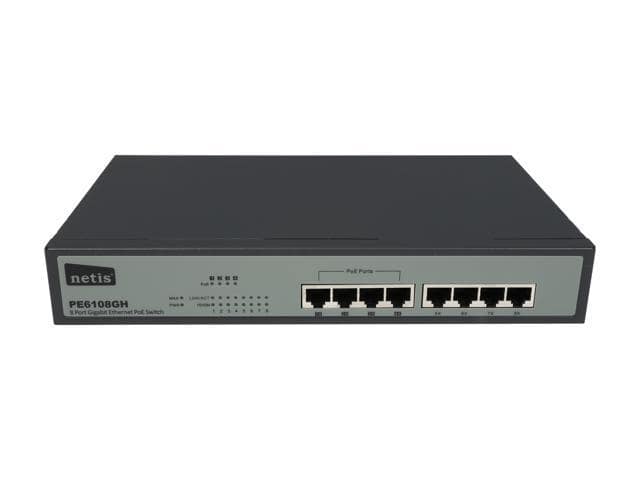

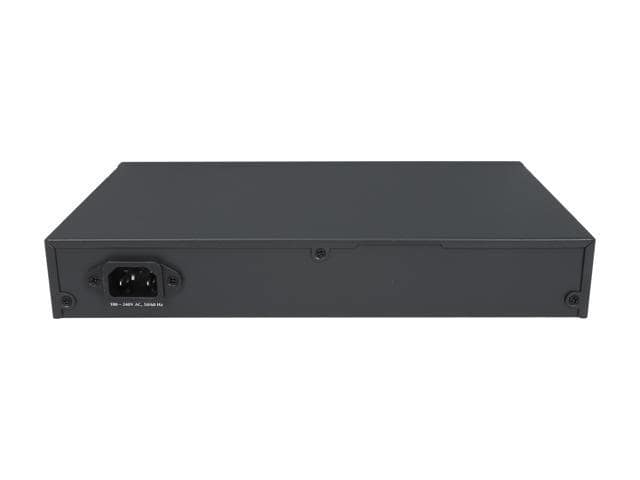

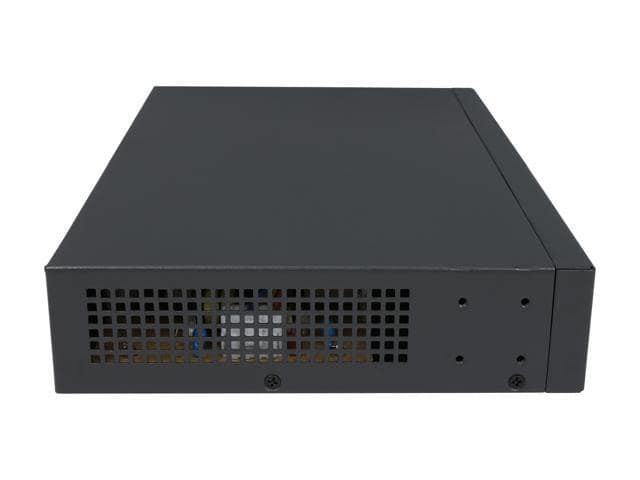

Gallery

Specifications

Hardware
Interface	8 10/100/1000Mbps RJ45 port, including 4 PoE ports (Port 1 – Port 4)
LED	PWR, MAX, 1 – 4 PoE, 1 – 8 1000M, 1 – 8 LINK/ACT
Power Supply	100 ~ 240VAC / 50 – 60Hz
PoE	Power 85 Watts (max. with PD connected)
Dimensions (L x W x H)	11 x 6.8 x 1.6 in. (280 x 173 x 43mm)
Switching Features
Standard	IEEE 802.3u 1000Base-TX, IEEE 802.3u 100BASE –TX, IEEE 802.3 10BASE –T, IEEE 802.3at /af, IEEE 802.3x Flow Control
Access Method	CSMA/CD
Transmission Method	Store and Forward
Switching Fabric Capacity	16Gbps
MAC Address Table	8K, auto-learning & auto-aging
Flow Control	IEEE 802.3x Flow Control, Full-Duplex mode Back-Pressure Flow Control, Half-Duplex mode
PoE	30 Watts (Max. each port) 60 Watts (Max. all ports)
Others
Certifications	FCC, CE
Environment	Operating Temperature: 32 – 104°F (0 – 40°C) Storage Temperature: -40 – 158°F (-40 – 70°C) Operating Humidity: 10% – 90% RH, non-condensing Storage Humidity: 5% – 90% RH, non-condensing
Package	PE6108GH Power Cord Two Brackets Quick Installation Guide

Contents
